Specification

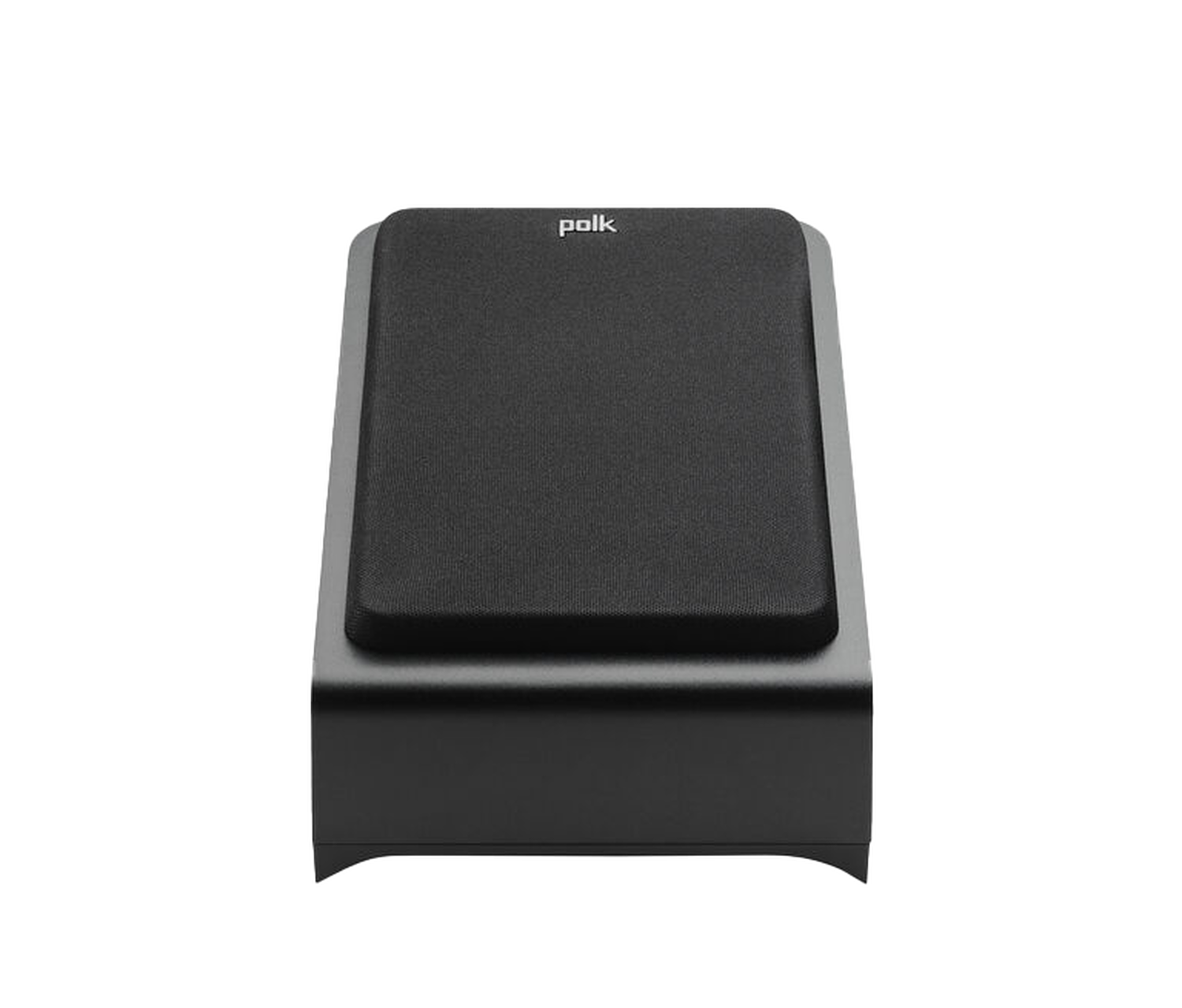

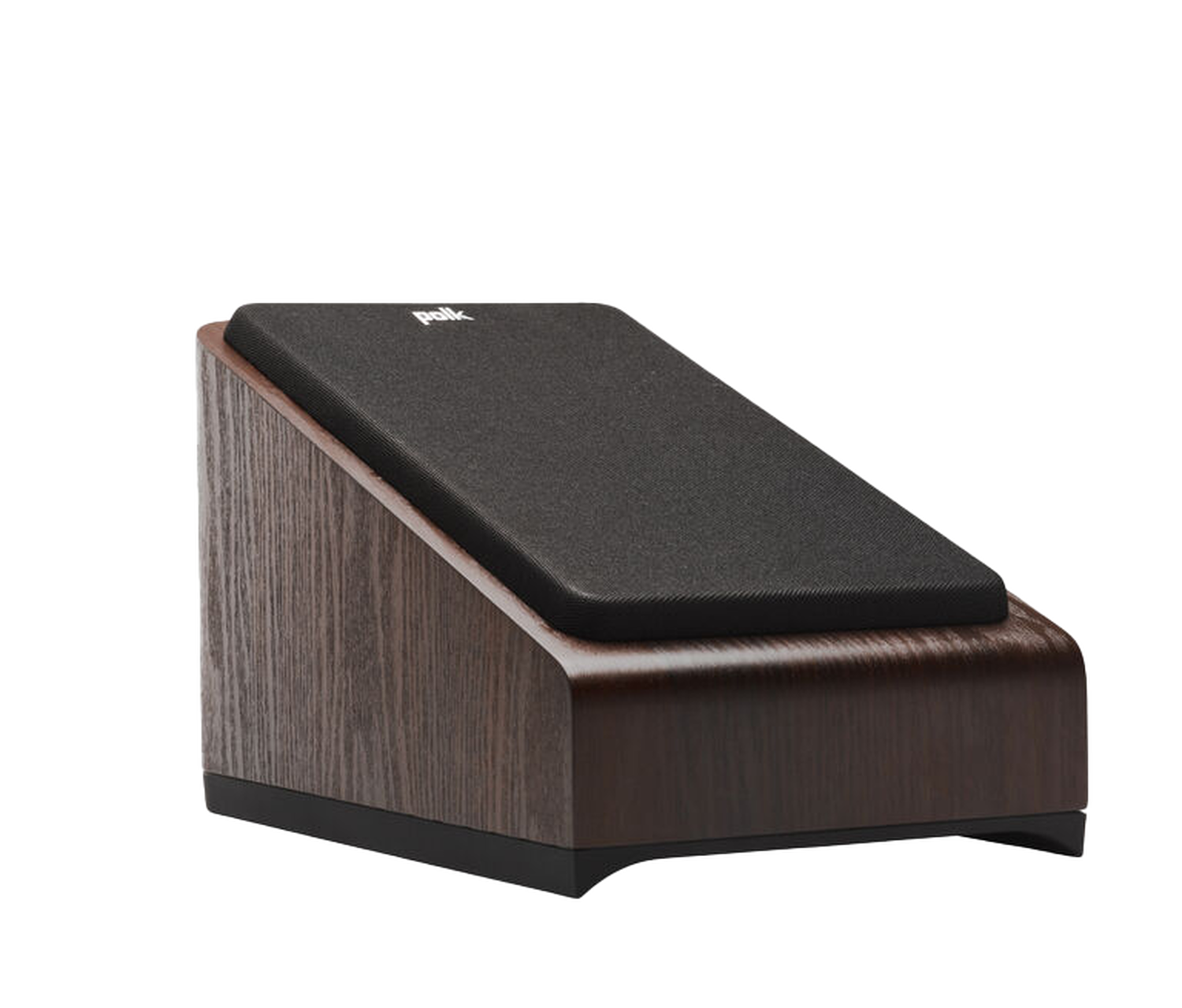

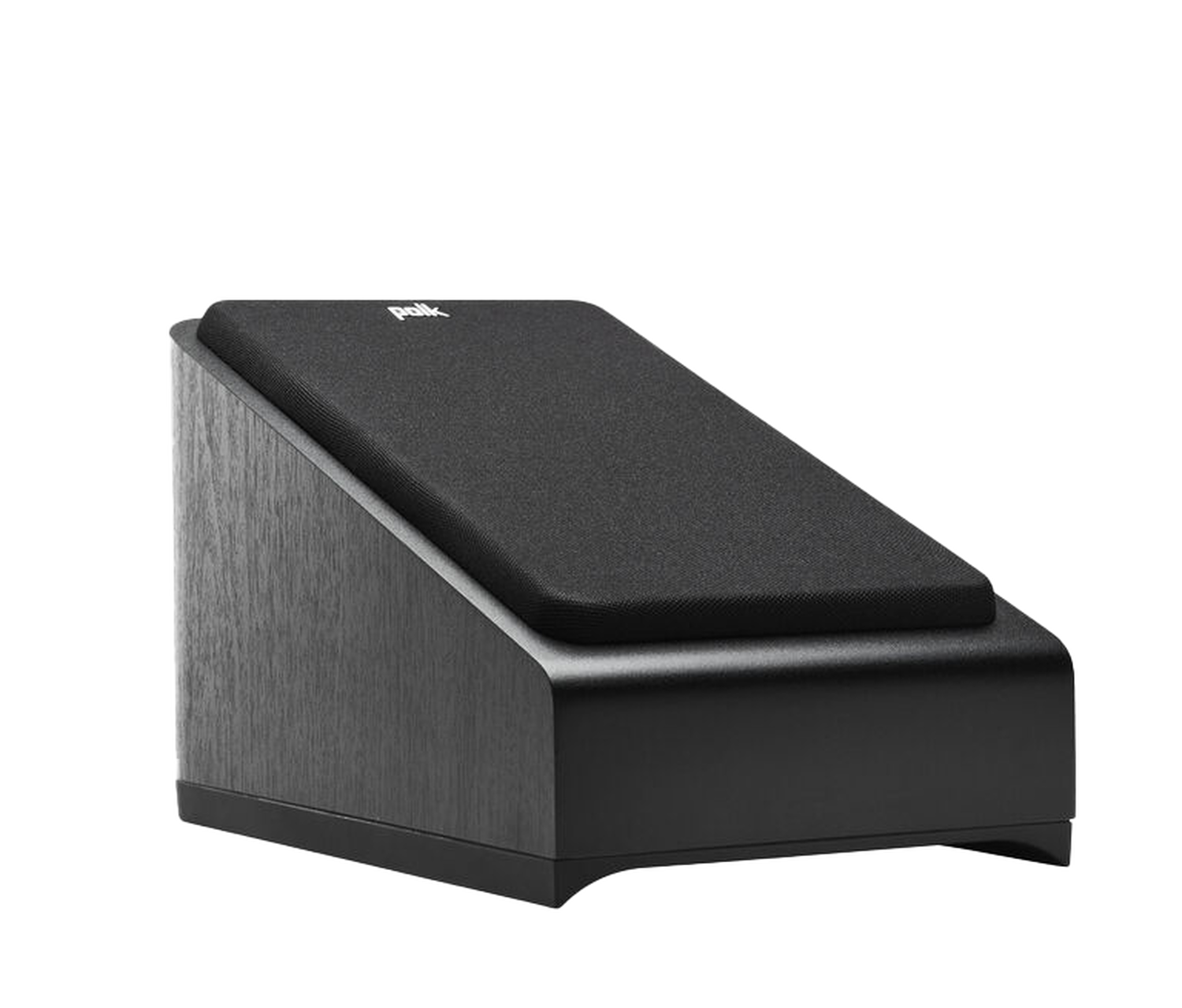

HEIGHT MODULE SPEAKERS

   Speaker Type Height (topper)

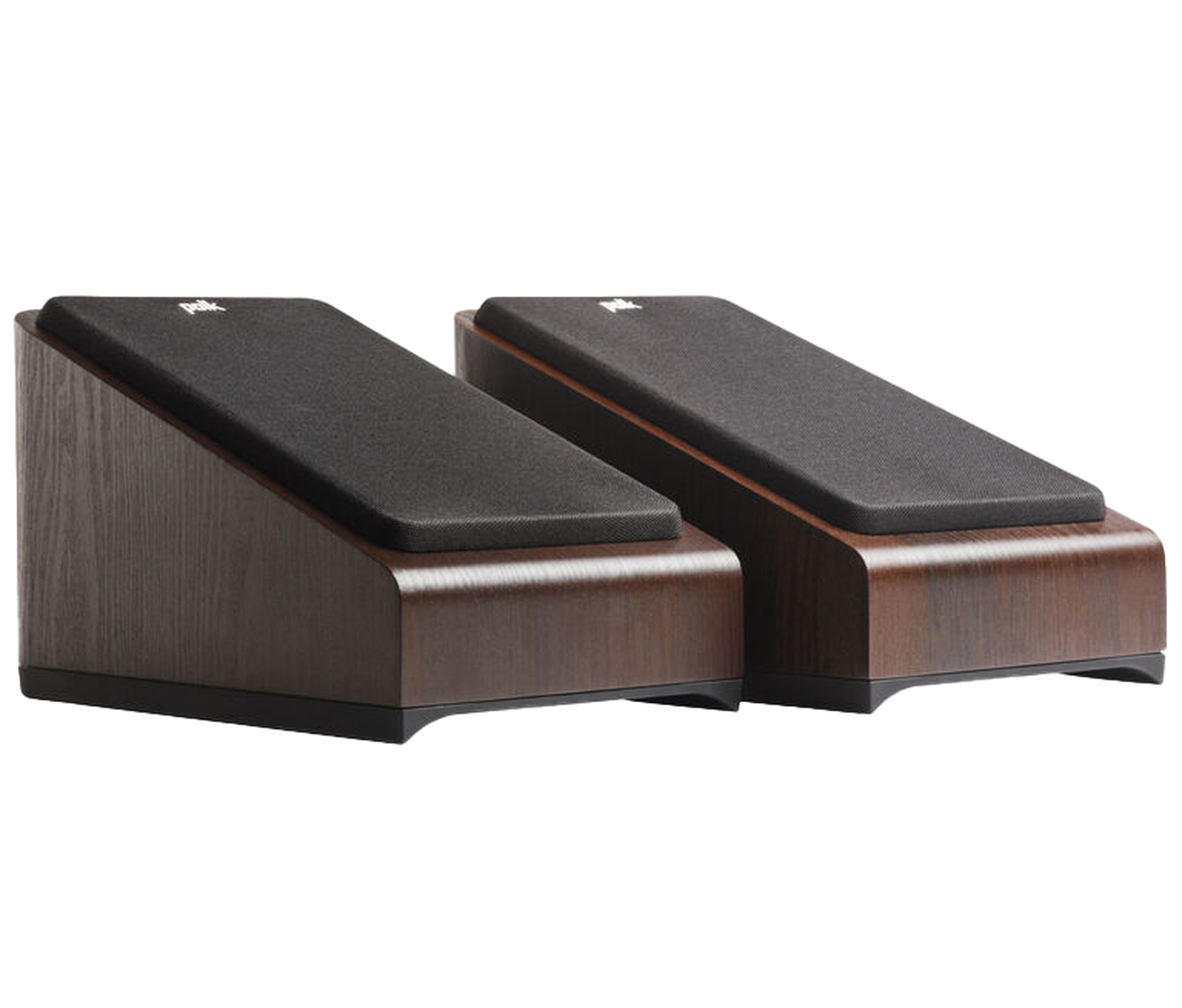

   Quantity Included Pair
   Product Dimensions (W x H x D) 7.5 x 7.3 x 12.1 in. (189 x 186 x 306 mm)
   Weight (one speaker) 8.3 lbs (3.76 kg)
   Tweeter 1 in. (2.5 cm) Terylene dome
   Midrange/Midbass 5.25 in. mica-reinforced polypropylene driver
   Crossover Frequency 2200 Hz
   Frequency Response -10dB Frequency Limits:
   52 Hz–40 kHz
   -3dB Frequency Limits:
   142 Hz–26 kHz
   Nominal Impedance 4Ω (8Ω compatible)
   Recommended Amplifier Power 20–150W per channel
   Sensitivity 85dB

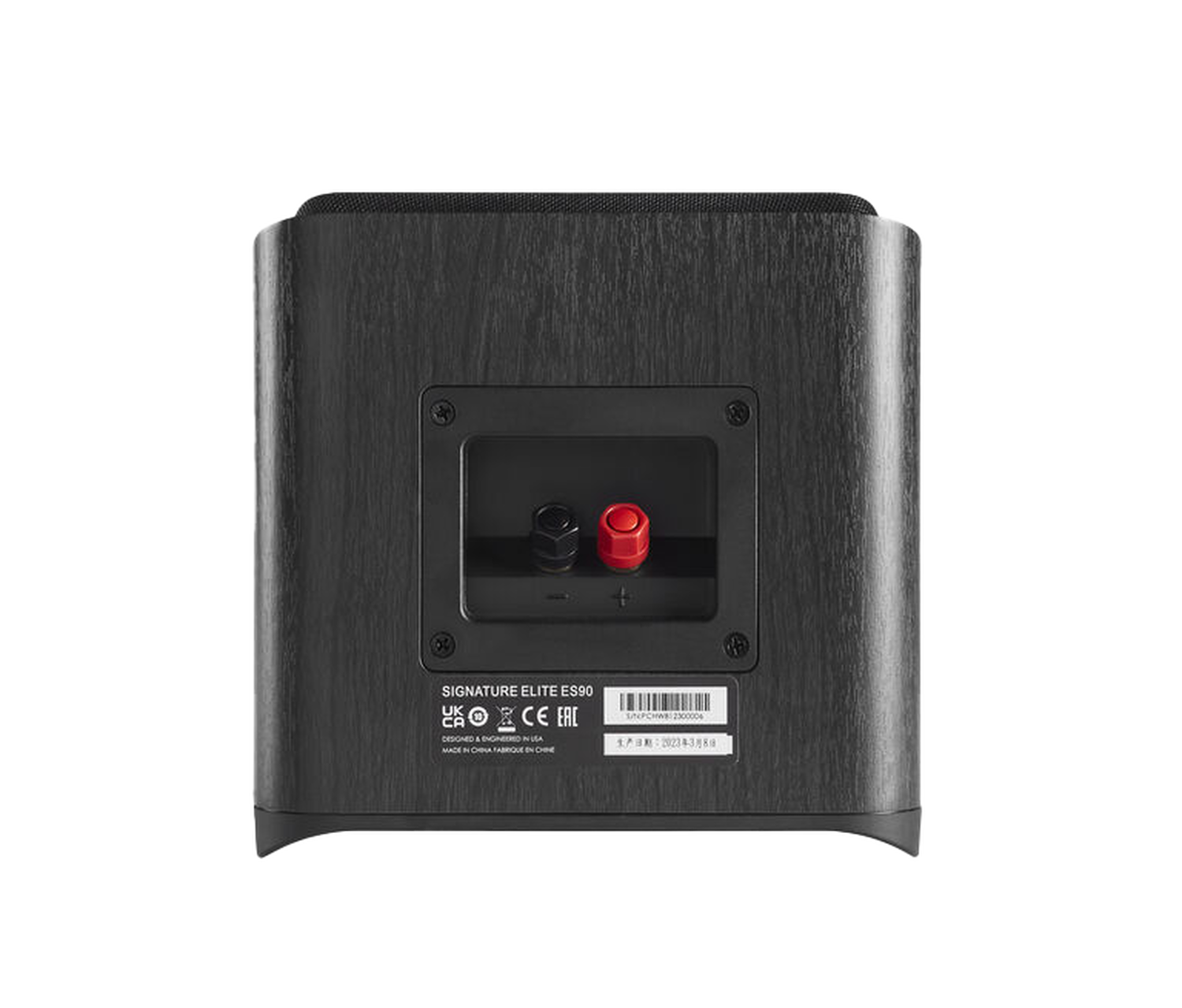

   Inputs 1 pair of 5-way binding posts (gold)
   Certifications Dolby Atmos
   Speaker Compatibility Signature Elite Series:
   ES55, ES60, ES20
   Signature Series:
   S20, S55, S60
   Package Dimensions (L x W x H) 17.8 x 16.3 x 11.8 in. (45.1 x 41.3 x 29.9 cm)
   Package Weight 20.4 lbs (9.25 kg)

‍
