Specification

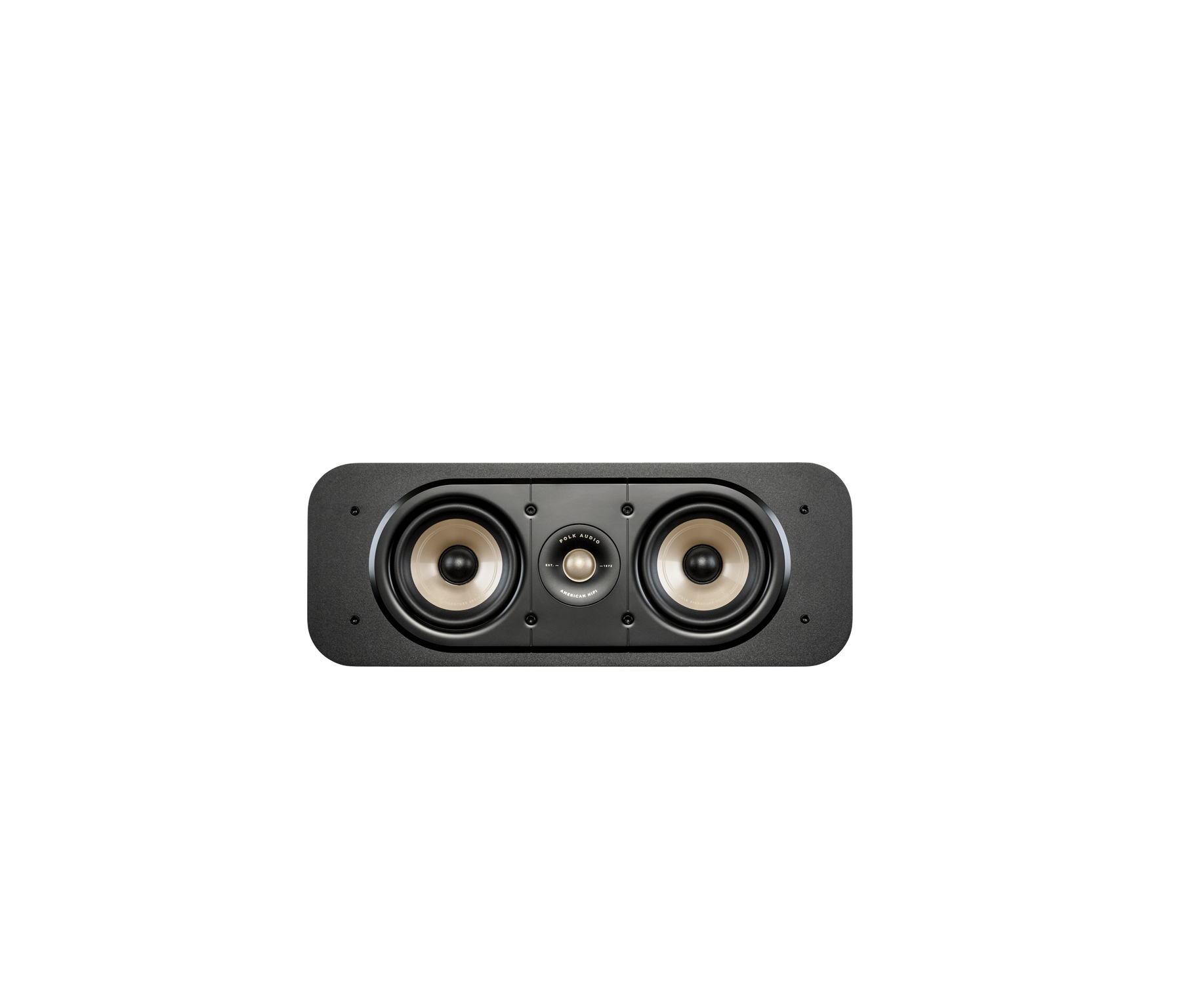

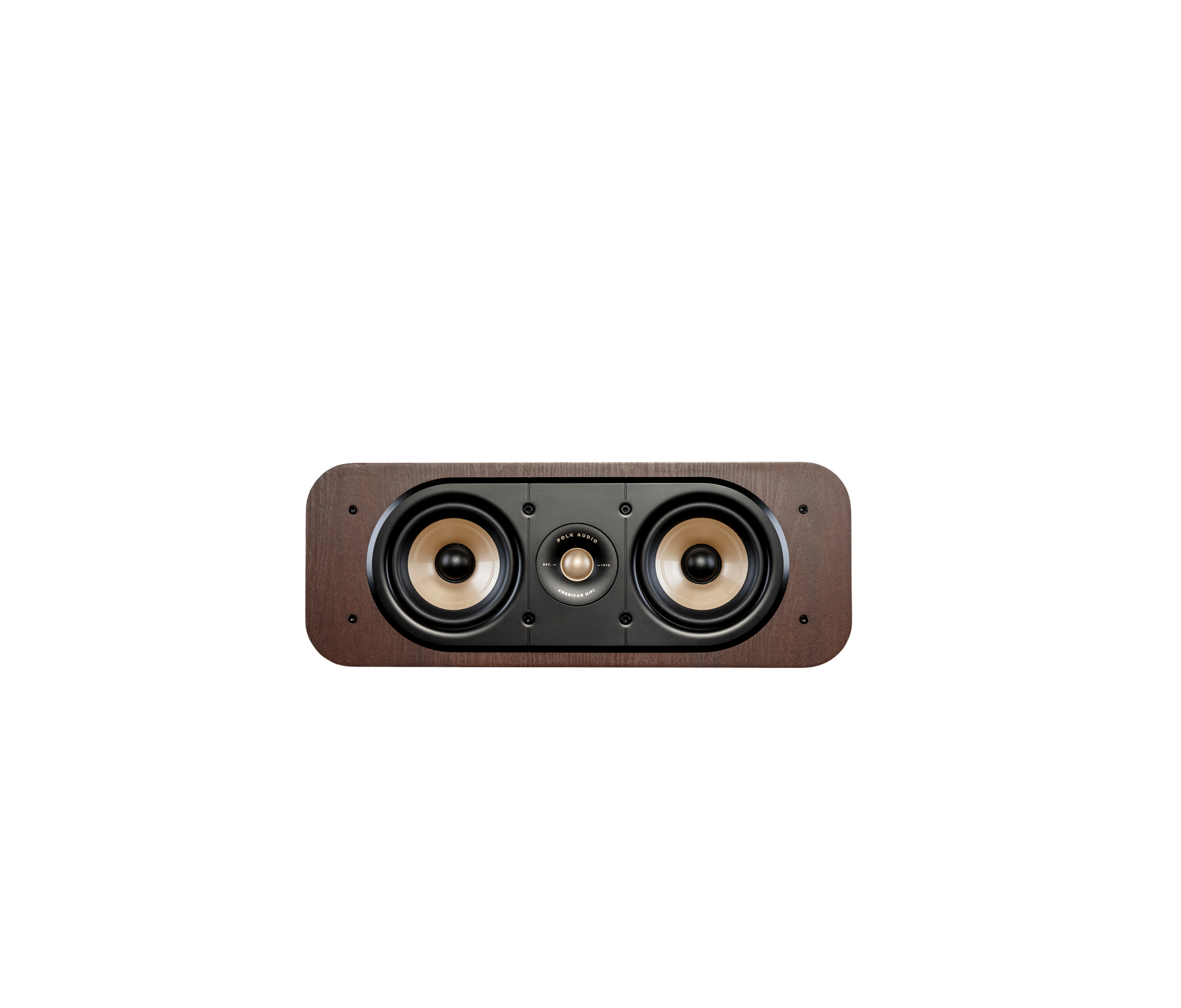

Signature Elite ES30 CENTER CHANNEL SPEAKER

   Total Frequency Response 55 Hz → 40 kHz
   Depth 10.6" (26.92 cm)
   Driver Complement • (1) 1" (2.54 cm) d (Round) Terylene High-Res Dome Tweeter
   • (2) 5.25" (13.34 cm) d (Round) Dynamic Balance Mica Reinforced Polypropylene Drivers
   Driver Enclosure Type PowerPort Bass Vented
   Height 7.5" (19.05 cm)
   Orientation Horizontal
   Quantity Included 1
   Weight 19 lbs (8.62 kg)
   Width 20" (50.8 cm)
   Recommended Amplifier Power Per Channel 20 watts → 125 watts
   Inputs Single gold-plated 5-way binding posts
   Sensitivity (2.83V @ 1m) 88 dB
   Impedance Compatible with 4 and 8 ohm outputs
   Crossover Frequency 2.3 kHz

‍
