SPECIFICATIONS

DIMENSIONS W D H

   Sound Bar: 41.2 x 3.7 x 2.4”
   1046 x 95 x 60mm
   Subwoofer: 7.9 x 12.9 x 11.0”
   200 x 328 x 280mm

Drivers

   Sound Bar: L/R Tweeter: (2) 1” / 25mm (Round)
   L/R Mid: (2) 4.7 x 1.6” / 120mm x 40mm (Racetrack)
   Full Range Center: (1) 1” / 25mm (Round)
   L/R Elevation: (2) 2.6” / 66mm (Round)

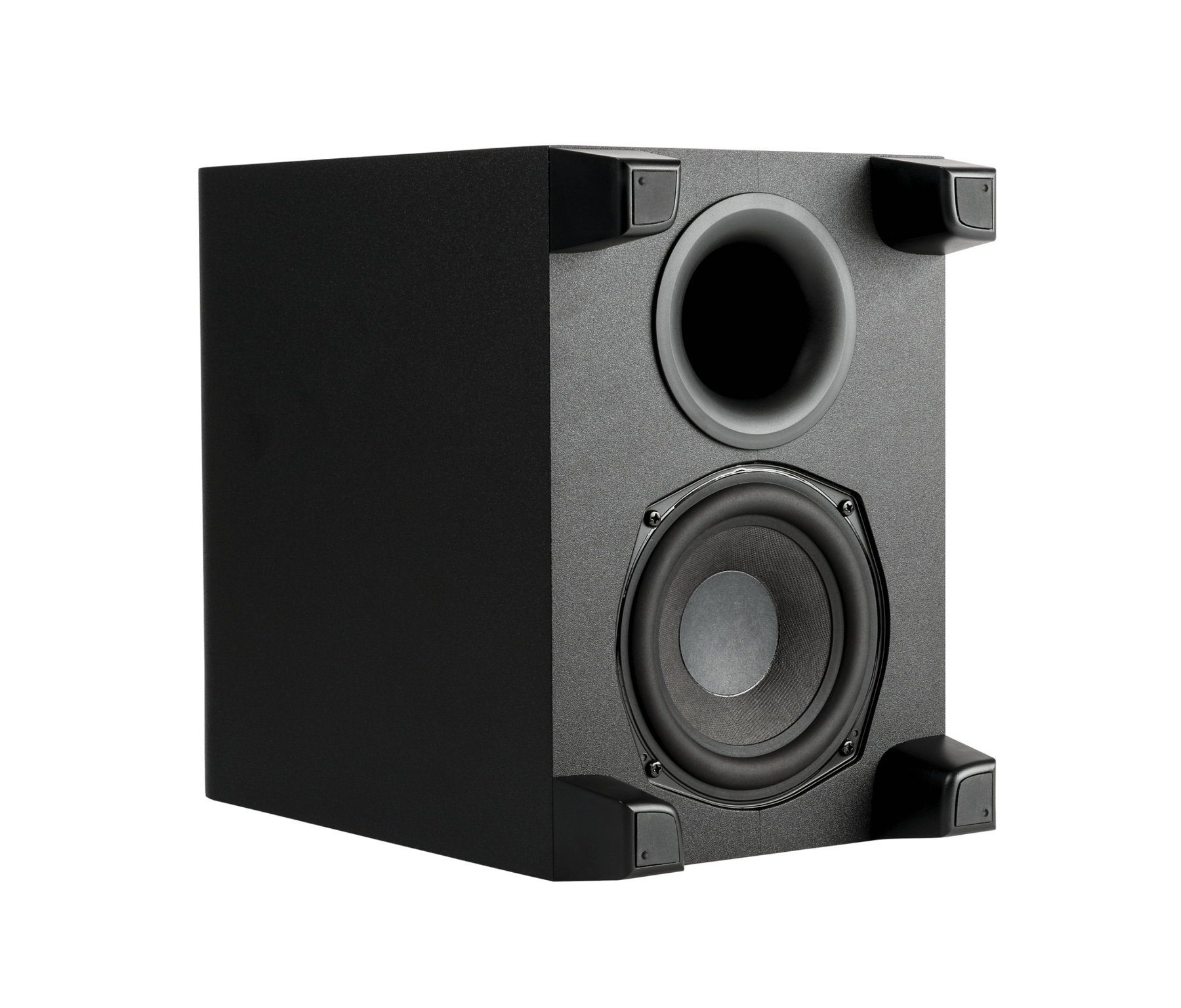

   Subwoofer: Woofer: (1) 5.9” / 15cm (Round)

SPECIFICATIONS

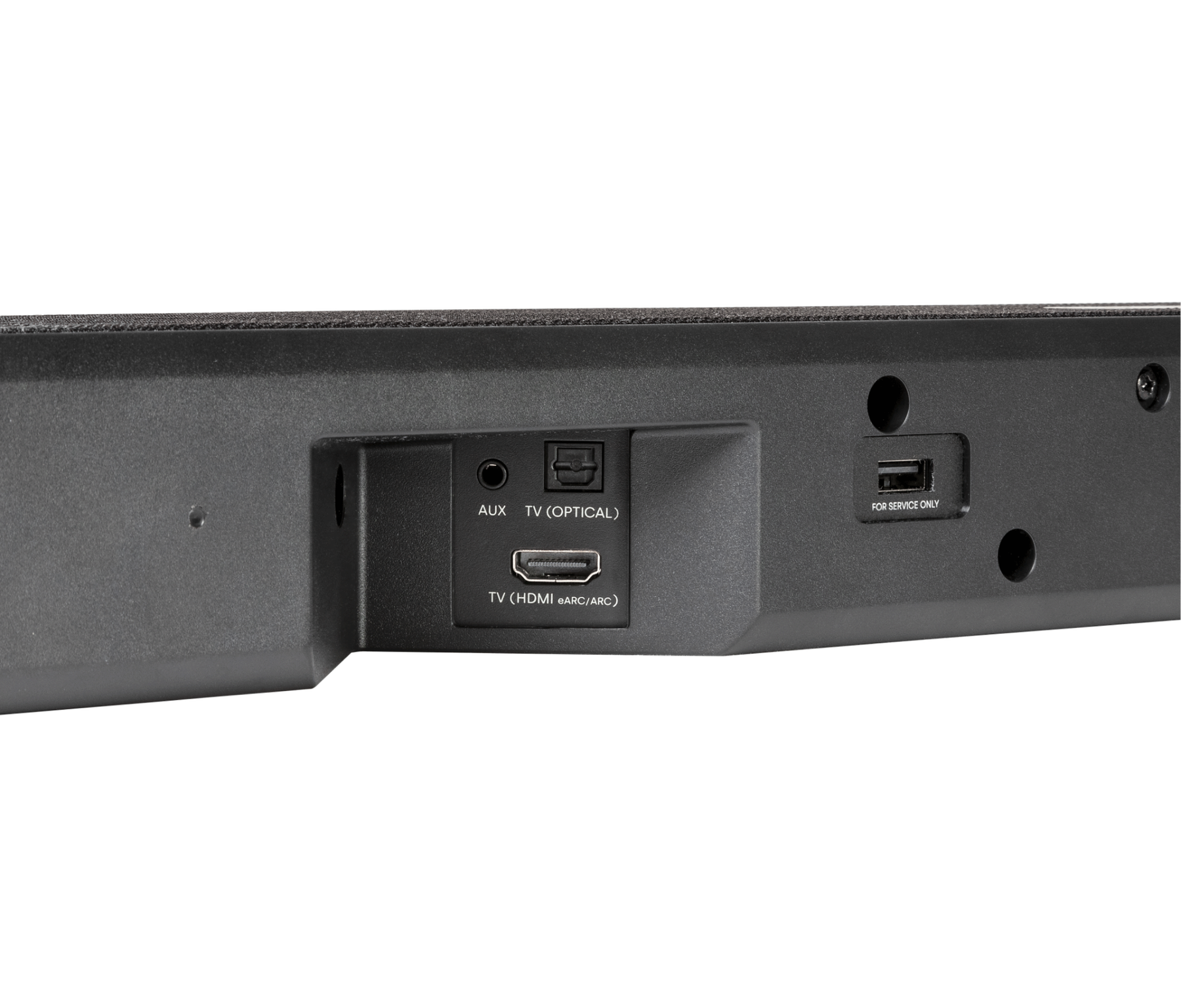

   Inputs (1) HDMI (eARC)
   (1) Optical input
   (1) Analog 3.5mm input
   Bluetooth
   (1) USB-A (for firmware updates)
   What’s in the Box: • Sound Bar
   • Subwoofer

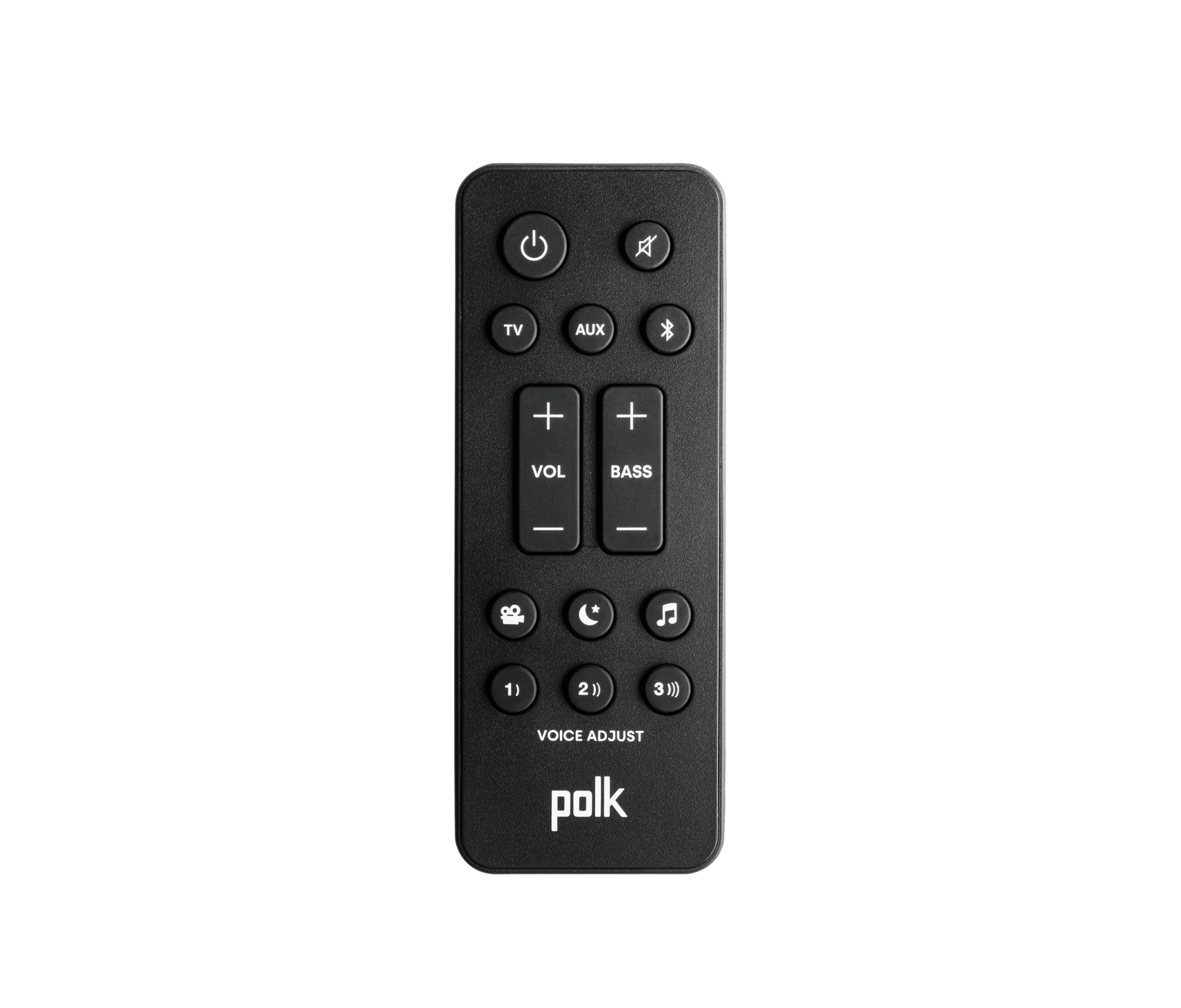

   • Remote Control
   • Sound Bar Power Cord
   • Subwoofer Power Cord
   • HDMI Cable
   • Optical Cable
   • 2x AAA Batteries
   • Quick Start Guide
   • Registration Card
   • Safety Card
   • Wall Mount Template
   • Wall Mount Spacers

‍
