Specification

TRANSDUCER

   Tweeter 1" Pinnacle Ring Radiator
   Mid-range/Mid-bass -
   Woofers 5 ¼” Turbine Cone
   Overall Frequency Response 44Hz - 50kHz
   Frequency Response (-3dB limits) 58Hz - 39kHz
   Recommended Amplifier Power 30 - 150W
   Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
   Minimum Impedance (ohms) 3.6Ω
   Sensitivity (2.83V/1m) 86dB

CROSSOVER

   Tweeter/Mid-range Crossover Frequency 2700
   Mid-range/Mid-bass Crossover Frequency -

MEASUREMENTS

   Product Dims W x H x D (Includes width of feet) 166 x 324 x 259.5mm
   6.5 x 12.8 x 10.2 in
   Product Weight (each) 12.2 lbs/5.5 kg
   Shipping Weight 28.4 lbs/12.9 kg

CABINETRY

   New CRC (Mid-Range Enclosure Type) -
   Mid-Bass / Woofer Enclosure Type Rear X-Port

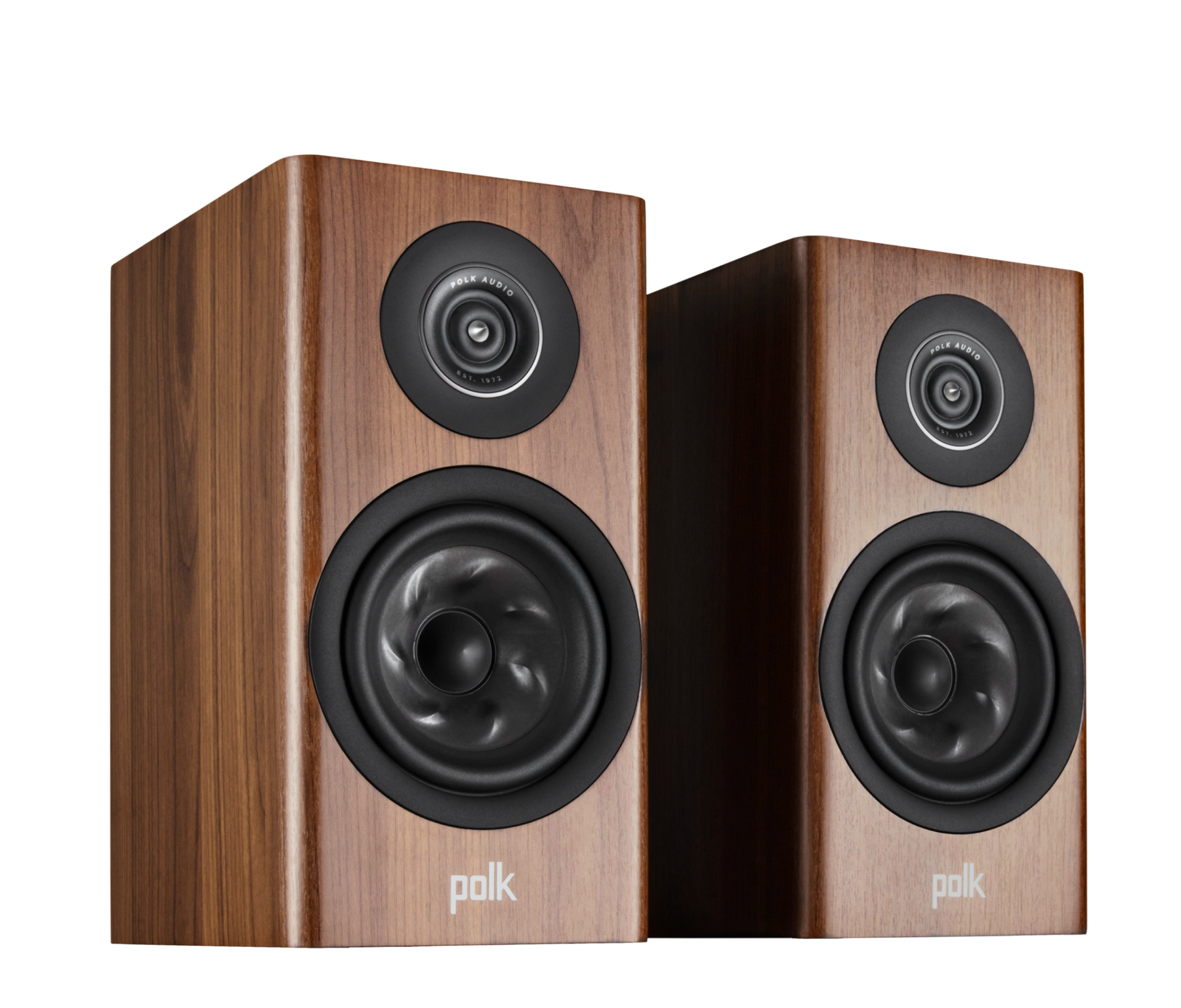

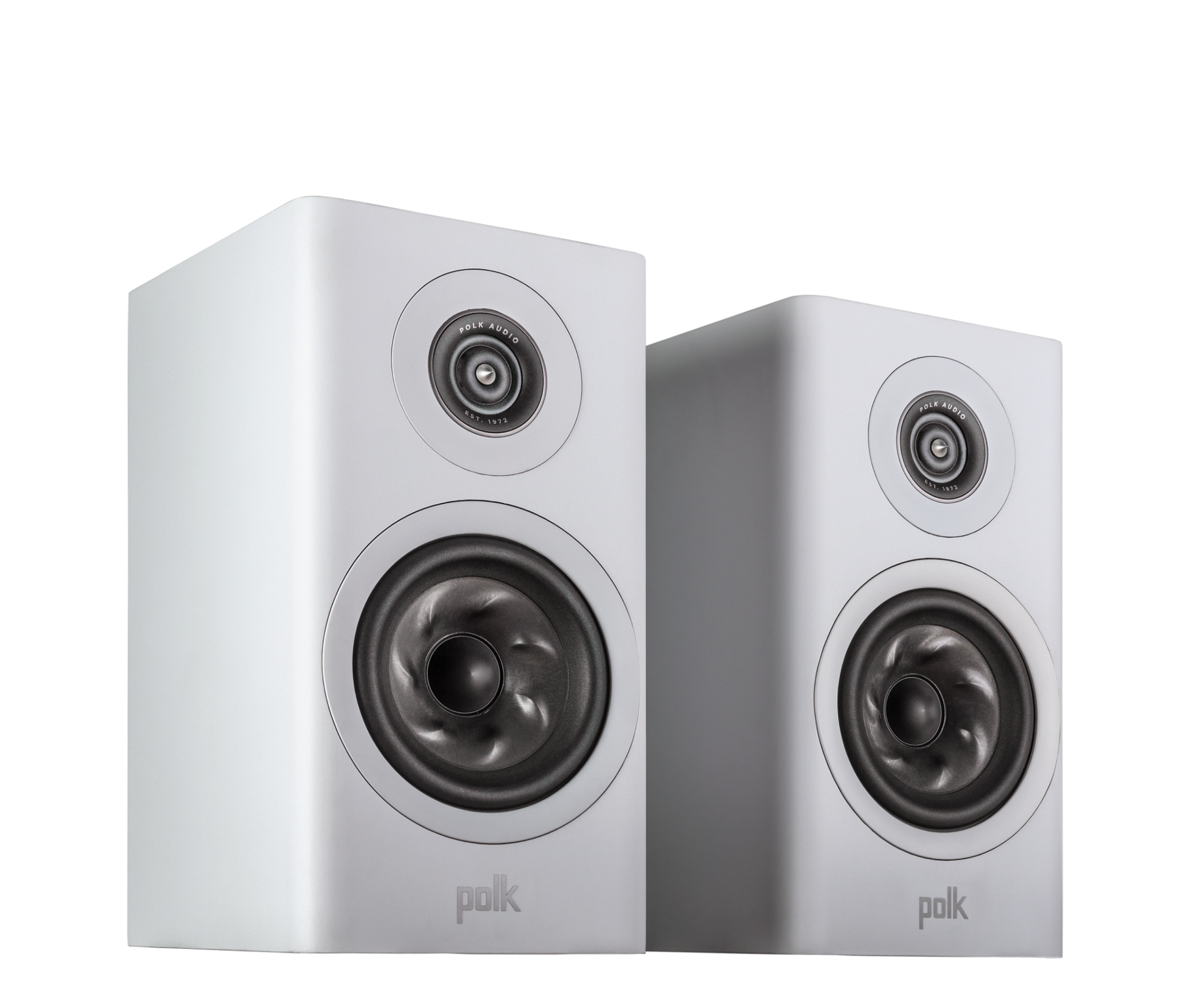

   Available Finishes Black / Walnut / White
   Feet Rubber pads
   Binding Posts: Nickel-plated 5-Way Single

Certifications Non-Safety and Regulatory

   Hi-Res Certified Yes
   IMAX Certified No
   Shipping Dims (WxHxD) 478 x 348 x 422mm
   (18.8 x 13.7 x 16.6) in

‍
