SPECIFICATIONS

OVERALL

   Total Pieces 2

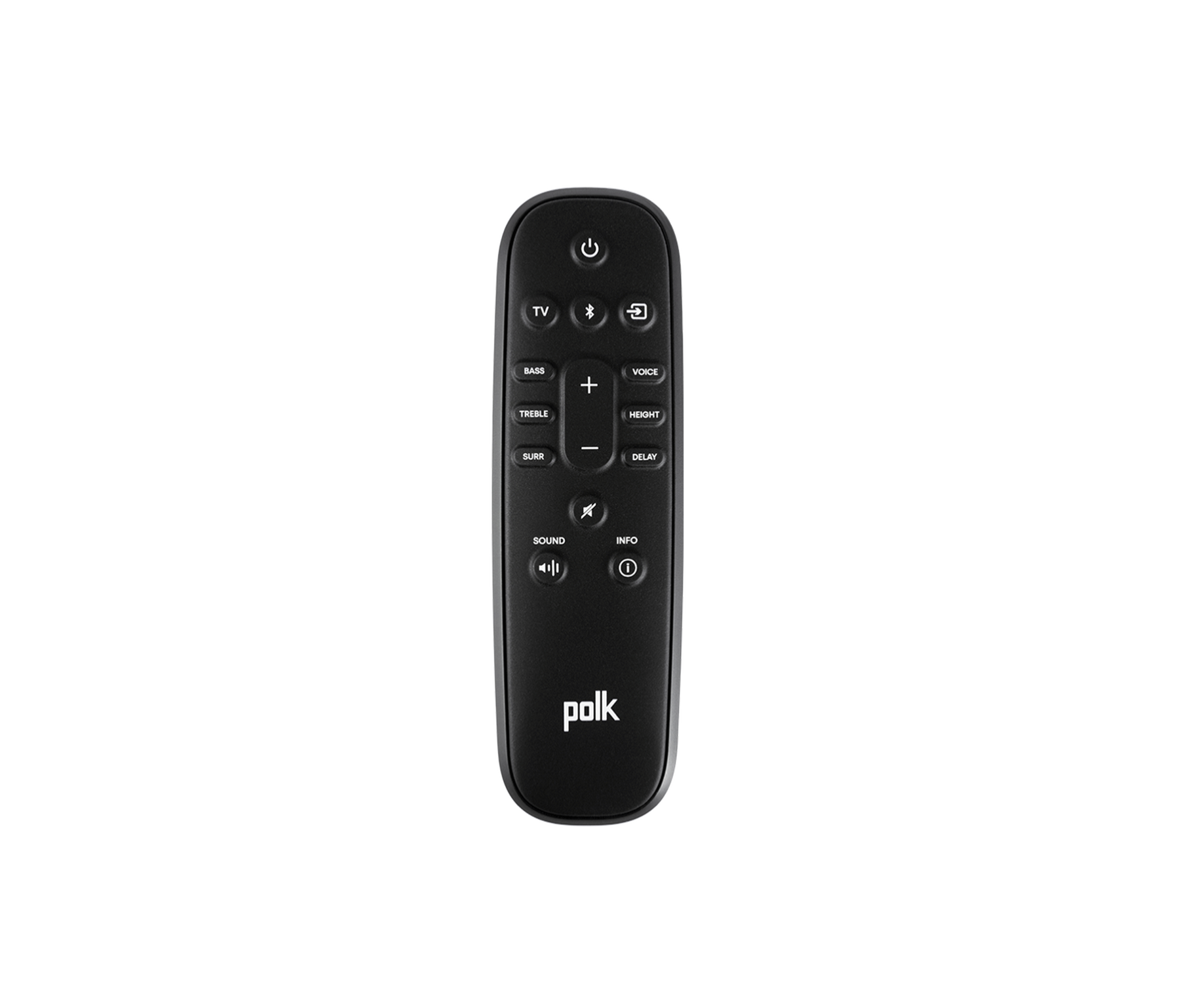

   Remote Deluxe Remote
   Remote Type Infrared (IR)
   Included Accessories (1) High-speed HDMI cable
   (1) Deluxe Remote
   (2) AAA Batteries
   (2) Sound Bar wall mounting brackets (screws and fasteners not included)
   (1) Sound bar wall mount template
   (1) Sound bar power cord
   (1) Subwoofer power cord
   (1) Quick Start Guide
   (1) Registration card
   Original Purchaser Only Yes
   Electronics Warranty 1 years
   Drivers Warranty 3 years
   Carton 1 (H x W x D) 22.4 x 48 x 14.1 in
   56.9 x 121.8 x 35.8 cm

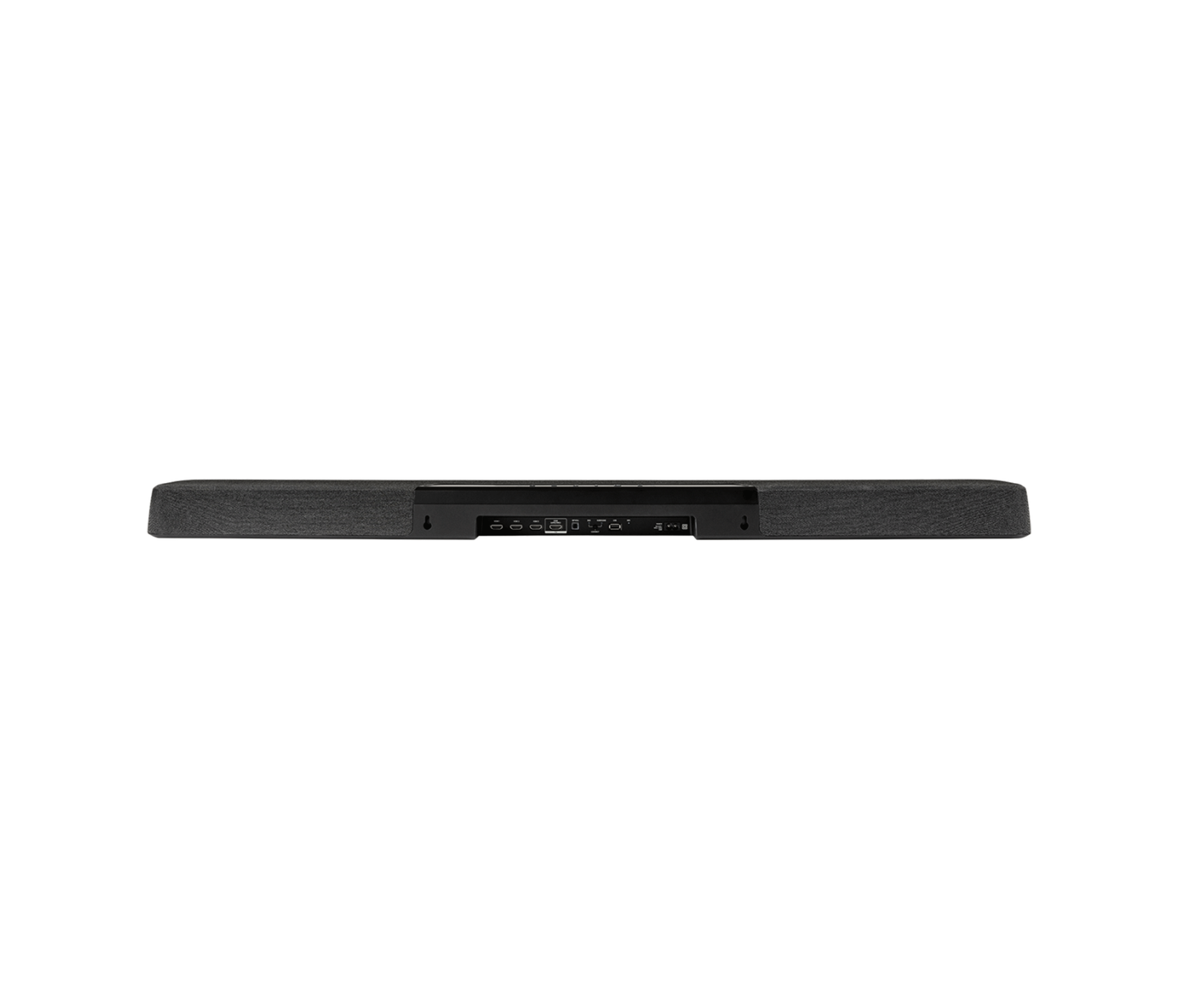

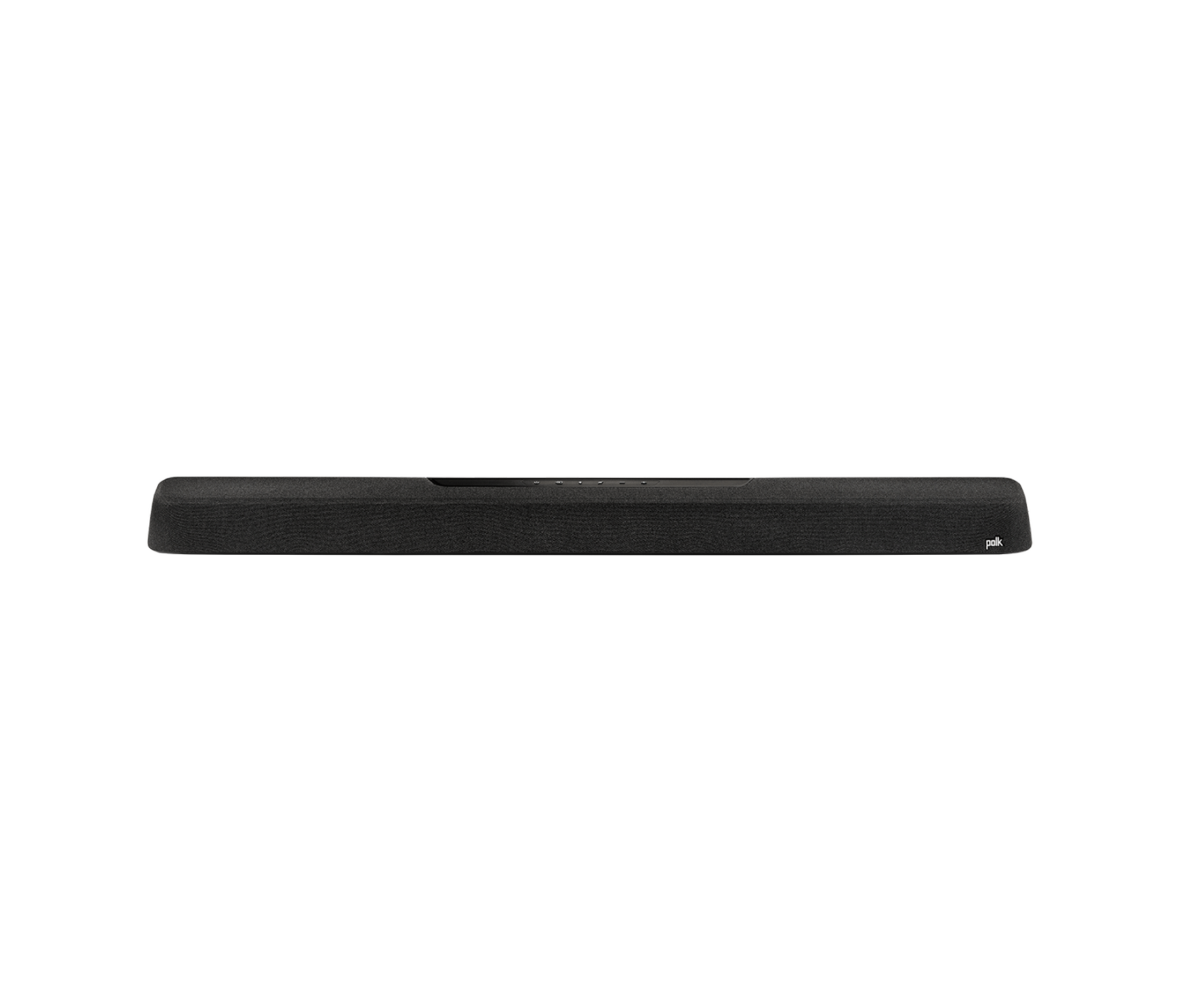

SOUND BAR

   Qty Included 1
   Height 4.6 in (118 mm)
   Width 45 in (1143 mm)
   Depth 2.8 in (72 mm)
   Weight 12.85 lb (5.83 kg)
   Driver Complement
   Left/Right Channels (4) 1 x 3 in (25 x 76 mm) racetrack mid-woofer drivers
   (2) 0.75 in (19 mm) soft dome tweeters
   Center Channel (2) 1 x 2.5 in (25 x 64 mm) racetrack mid-woofer drivers
   (1) 0.75 in (19 mm) soft dome tweeter
   Left/Right Height Channels (2) 2.5 in (64 mm) full-range drivers
   Bluetooth Bluetooth 5.0
   Wireless Yes
   Wireless Protocol Wi-Fi (802.11 a/n/ac 2.4 GHz & 5 GHz)
   Wi-Fi Streaming Platforms Apple AirPlay 2
   Google Chromecast for Audio
   Spotify Connect
   Works with Alexa
   Inputs/Outputs (3) HDMI 4K (60Hz)
   (1) HDMI eARC 4K (60Hz)
   Toslink Optical
   USB (for firmware updates)
   Video Pass-through 4K HDMI
   HDR
   Dolby Vision
   Ethernet No
   Mounting Type Flush-Mount Wall Bracket
   Available Orientations Horizontal

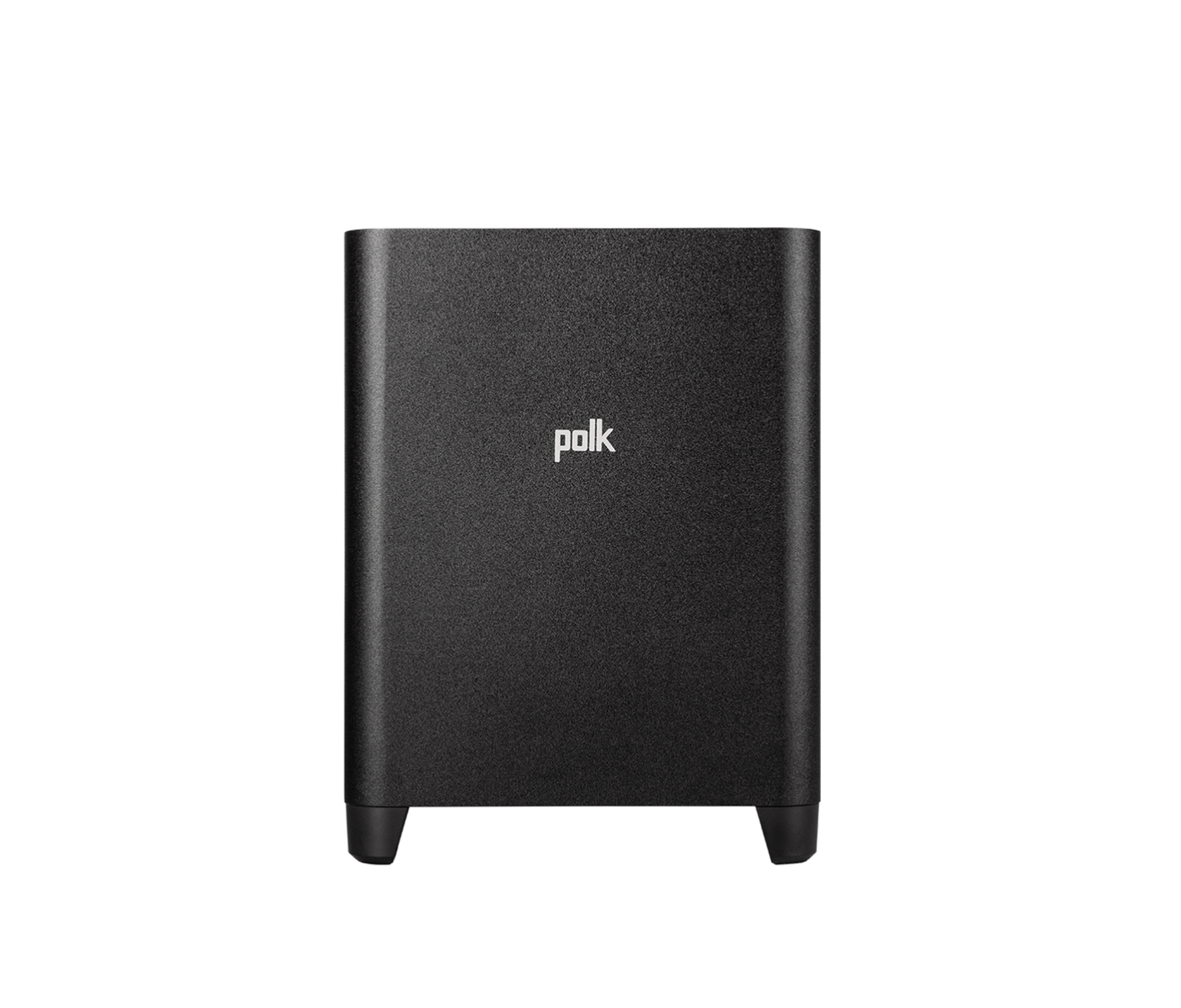

Wireless Subwoofer

   Qty Included 1
   Height 16 in (407 mm)
   Width 11.9 in (302 mm)
   Depth 15.7 in (399 mm)
   Weight 26.3 lb (11.9 kg)
   Subwoofer Array Driver Enclosure Type Downfiring, Ported
   Subwoofer Array Driver Complement (1) 10 in (25.4 cm) Round Woofer

SUPPORTED AUDIO FORMATS

   PCM
   Dolby Mono
   Dolby Digital
   Dolby Digital Plus
   Dolby Atmos
   Dolby Atmos True HD
   DTS Digital Surround
   DTS-HD
   DTS-HD Master Audio
   DTS:X
   DTS Virtual X

‍
