Specifications
Type:        Closed box, front firing woofer

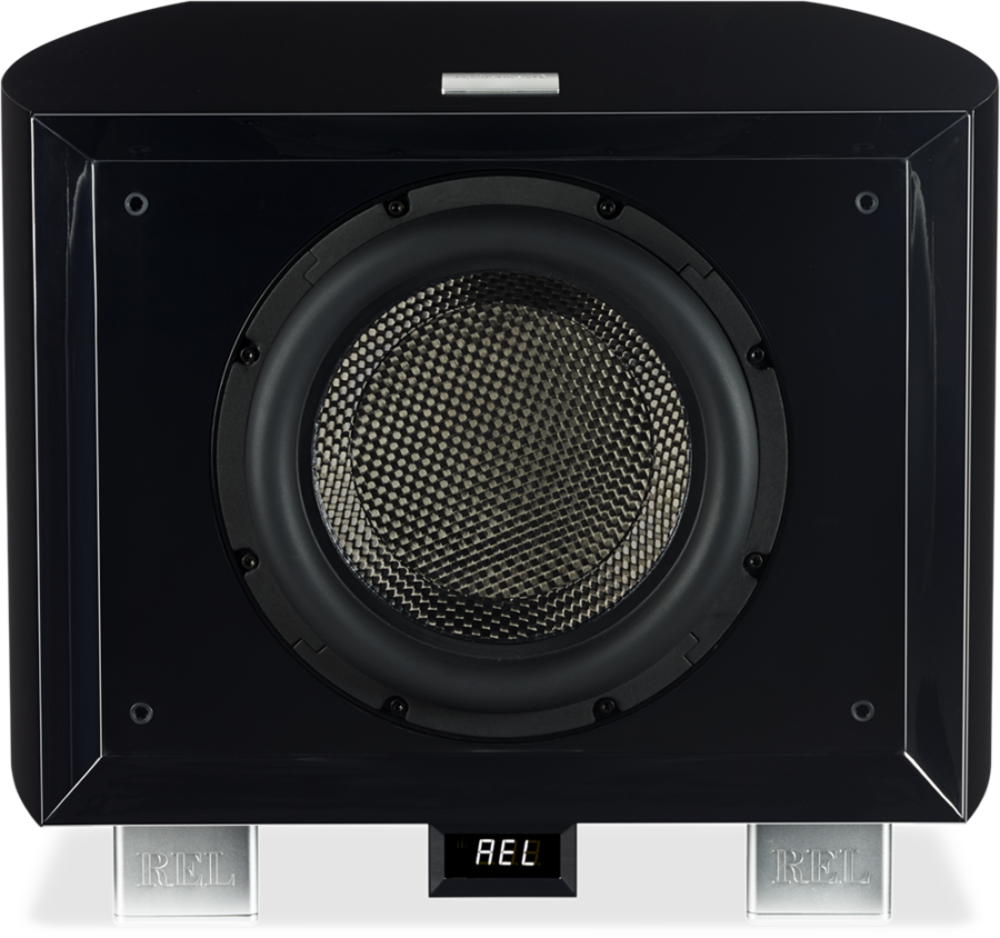

Active Driver Size & Material        12 in., 300mm long throw, carbon fibre cone with inverted carbon fibre centre cap
Passive Radiator Size & Material        N/A
Low Frequency Extention        -6dB at 15 Hz

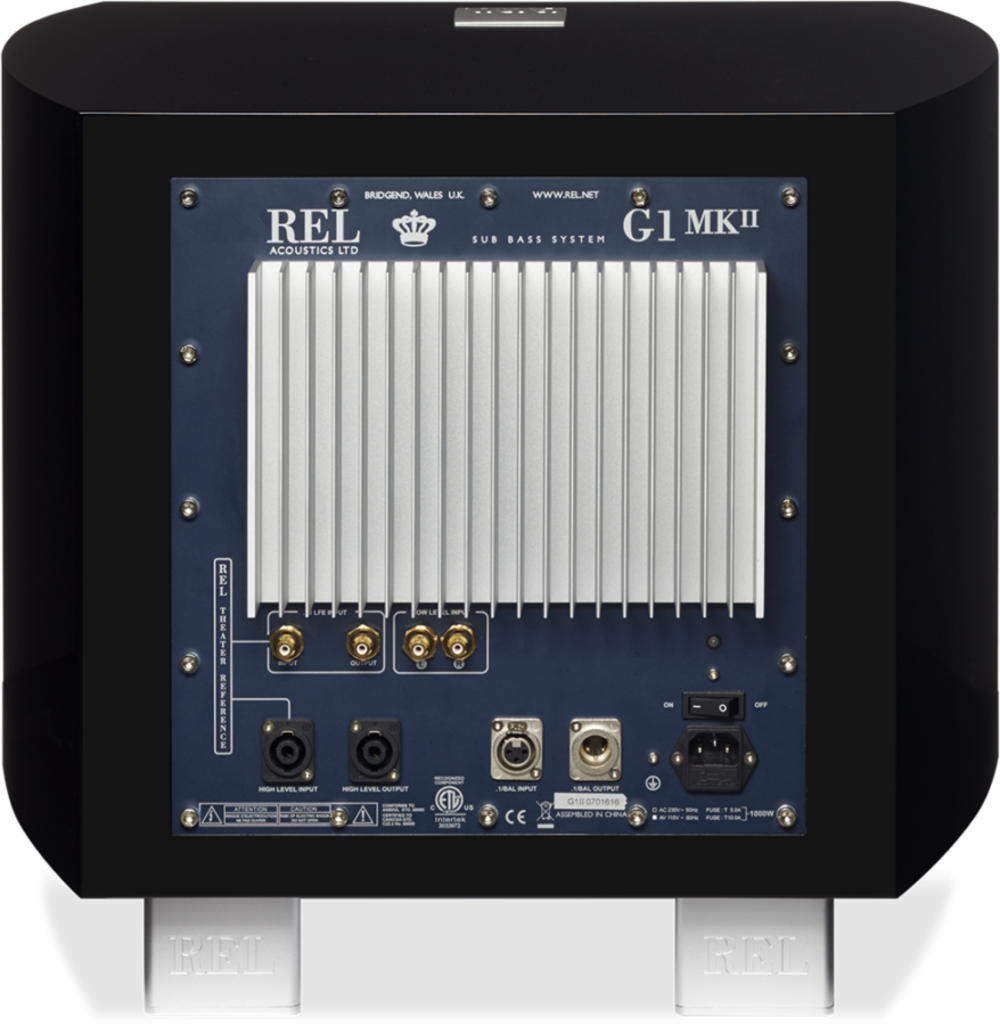

Input Connectors        High level, Neutrik Speakon, Low Level stereo RCA, LFE RCA
Output Connectors        High Level, Low Level RCA, Balanced XLR, Daisy Chain Outputs
Power Output:        600 watts (RMS) Ultra High-Current PowerSupply
Amplifier Type        Class AB
Wireless Capability        N/A
Protection System
Fully Electronic     SET-SAFE:        Yes
D.C. Fault:        Yes
Output Short:        Yes
Mains Input Voltage:        220-240 volts, 110-120 volts for certain markets
Fuses (semi delay):        5 Amp semi delay 230 volts operation
10 Amp semi delay 115 volts operation
Dimensions (WHD), Including Feet: Net Weight:          22.5 x 18.2 x 26.8 in. (571.5 x 462 x 680.3 mm)
Net Weight:        108 lbs (49 kg)
Finish (Gloss):        Piano Black Lacquer, 12 coats
Supplied Accessories
Mains Lead:        Yes
Neutrik Speakon        Yes
Interconnect        Neutrik Speakon Interconnect (10 Meters Nominal)
Users Manual:         Yes

‍
