TV COMPATIBILITY: Universal TV mount, for all brands (Samsung, Sony, Panasonic, LG etc)
in 55”, 65", 75", 77", 83" and 85" sizes or choose CANVAS SOLO for all
other TV sizes which can hang by itself under the TV.
STAND / WALL MOUNT: Hybrid, works on both floor and wall
FRONT GRILLES: Interchangeable magnetically attached in 12 finish options, including Kvadrat fabrics
and real wood, in 55”, 65", 75", 77", 83" and 85" sizes

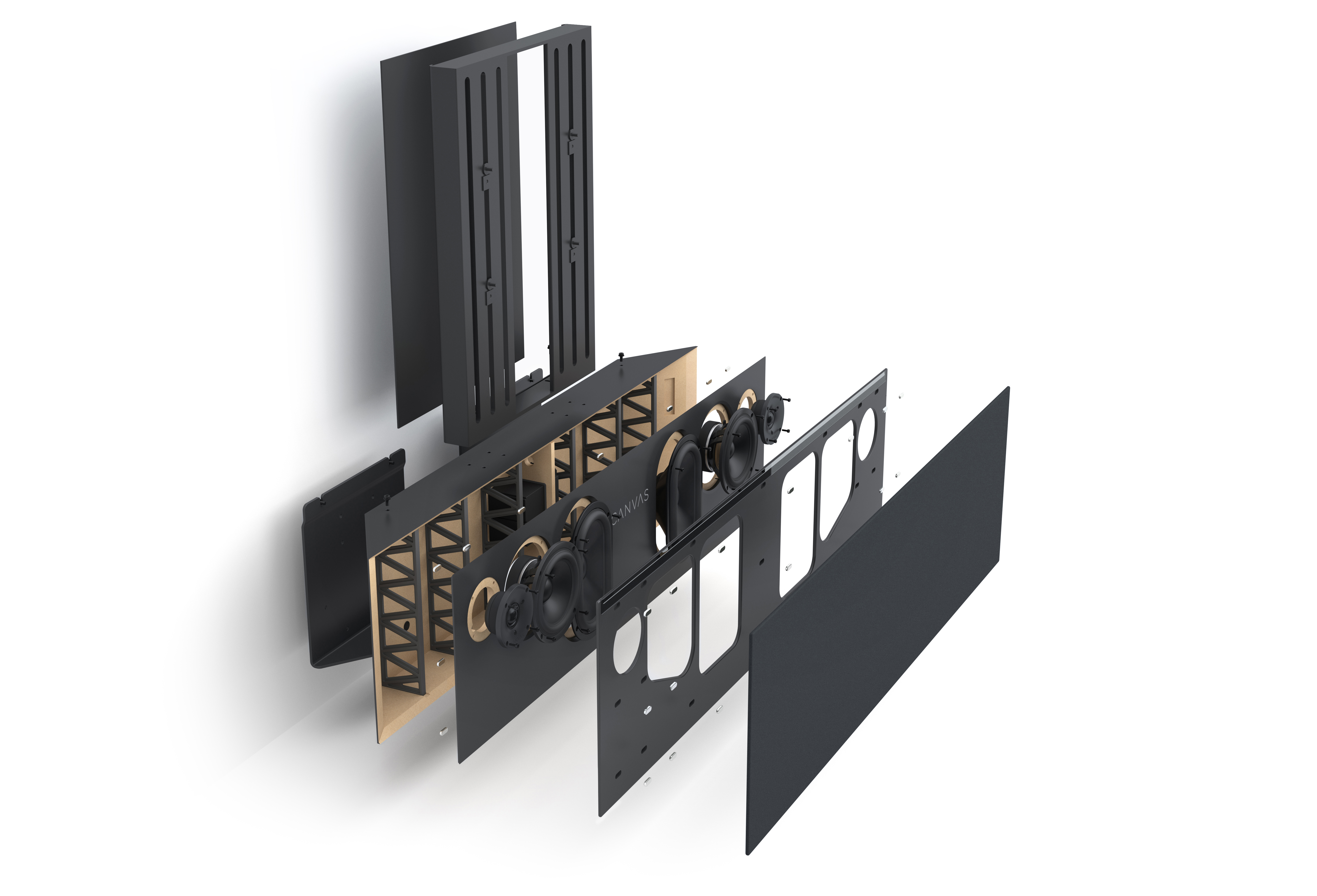

CABINET: Rock solid 24 liters, MDF with CANVAS BridgeBrace™ technology
BASS / MIDRANGES: 2 x High End SB Acoustics paper cone, long excursion 6,5” die-cast aluminium chassis
TWEETERS: 2 x High End SB Acoustics 29mm silk dome with CANVAS designed waveguide
die-cast aluminium frontplate
PASSIVE RADIATORS: 2 x High End SB Acoustics low-loss high precision, long excursion
CROSSOVERS: DSP tuned in a Klippel system for linear frequency response
and perfect phase responce, custom high order
AMPLIFIERS: 4 channel Class D HiFi amps with a total of 250 watts, but with
greater sound pressure than traditional soundbars with 1000 watts.
Many customers have wondered why CANVAS HiFi plays deeper and more
powerfully than traditional soundbars, which indicate they have
a much higher power output amplifier.
A large number of factors comes into play here, but an essential factor
is that CANVAS has a whopping 24 liters of effective acoustic volume,
in combination with 2 x 6.5" bass/midrange drivers and 2 x 5x8"
slave bass drivers, which gives 592 cm2 radiating surface area, which corresponds
to a 12" bass driver. CANVAS HiFi is therefore highly efficient, and plays louder
and with more bass than traditional soundbars
DAC’s: Burr-Brown 24 Bit / 192 kHz
FREQENCY RESPONSE: 28 Hz - 24.000 Hz
SIGNAL TO NOISE RATIO: 100 Hz > 104 dB
(Rated power output) 1 KHz >103 dB
10 KHz >105 dB
THD+N: 100 Hz <0.04 %
(1/8 Rated power output) 1 KHz <0.04 %
10 KHz <0.05 %
DSP: Powerful Analog Devices 300 MIPS quad-core with BACCH 3D filter
ROOM CORRECTION: Through iOS app, uses iPhones built in microphone or optional Zen Mic
CONNECTIVITY: HDMI eARC, Toslink, Analog, Apple AirPlay 2 (multi-room), Google Cast (multi-room),
Roon, Tidal, Spotify Connect, DLNA.
In addition, automatically activated input via control unit that can be hidden in
CANVAS for connection with existing control systems such as Sonos app, Bluetooth, B&O App,
Bluesound, HEOS, Bose App, Samsung App or other control units. Contact our support for help
with configuration if you have special wishes.
UPDATES: Software automatic OTA. Hardware electronics upgradable
